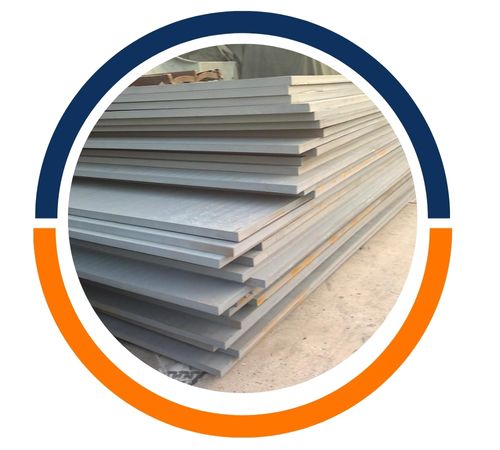

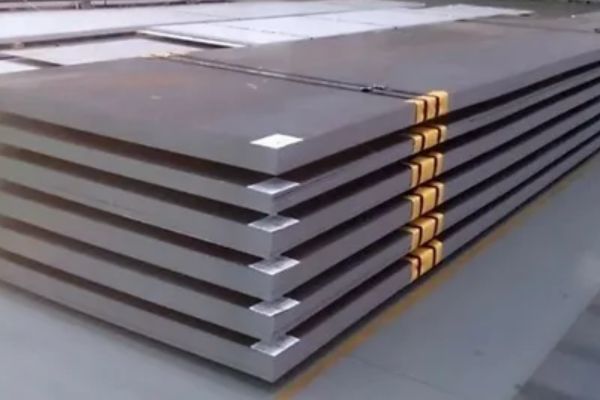

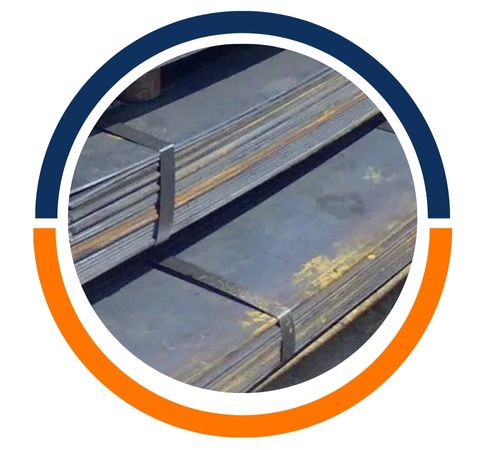

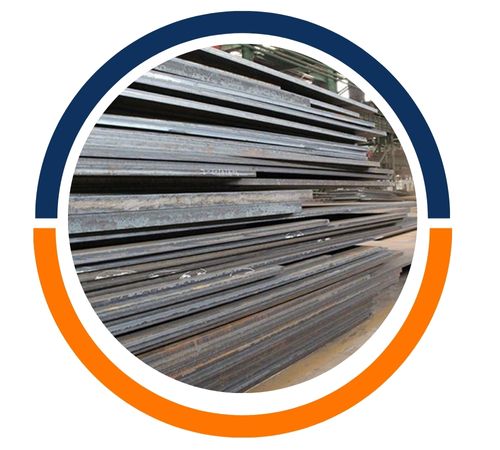

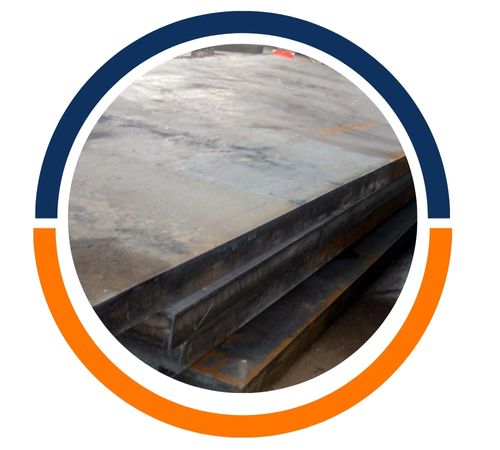

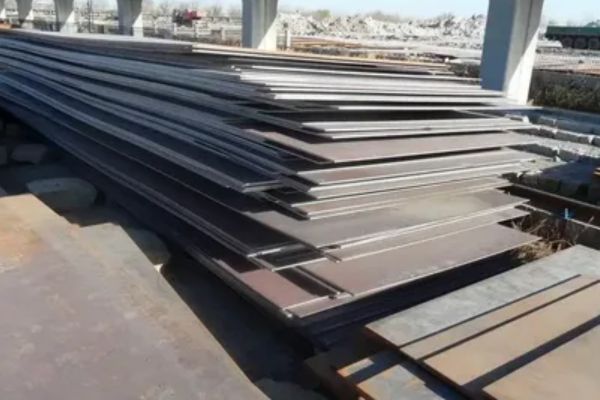

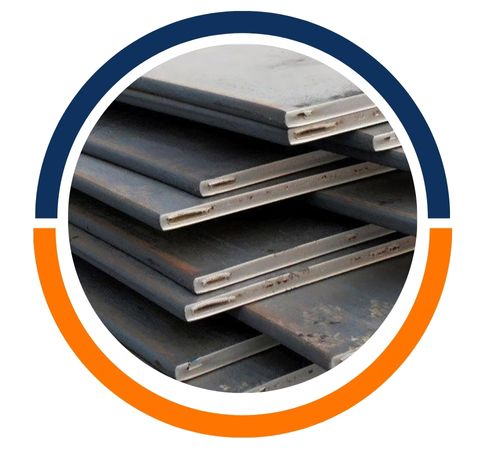

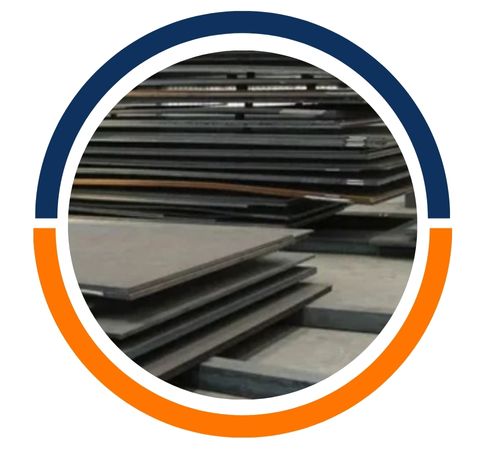

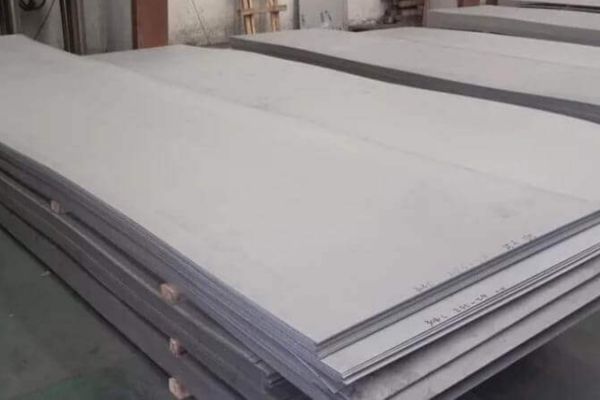

Located in the thriving industrial heart of Manama, Ahmer Steel stands as a trusted partner for marine-grade materials, proudly supplying the robust ABS EH36 shipbuilding steel. This high-strength steel is meticulously crafted to meet the rigorous demands of modern ship construction, offering exceptional durability and performance in the harshest marine environments. We are committed to providing our clients with materials that not only meet but exceed international standards, ensuring the safety and longevity of every vessel built with our steel.
The composition of ABS EH36 is precisely balanced, incorporating elements like carbon, manganese, and micro-alloys to achieve its superior characteristics. This careful formulation results in outstanding mechanical properties, including high yield strength and excellent toughness, even at low temperatures. It undergoes stringent testing to guarantee exceptional resistance to impact and fatigue, making it a fundamentally reliable choice for critical structural components where failure is not an option.
STANDARD:Â ASTM A131, ASME SA131
PLATES QUALITY: EH36(Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| Grade EH36 | C | Si | Mn | P | S | V | Al | Cr | Cu | Mo | Nb | Ni | Ti |
| 0.180 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.2 | 0.35 | 0.08 | 0.02-0.05 | 0.4 | 0.02 |
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Charpy V Impact Test | |
| Grade ABS EH36 | t≤50 | Min 355 Mpa | 490-620 Mpa | 21% | 24J | 34J |
| 50＜t≤70 | Min 355 Mpa | 490-620 Mpa | 21% | 27J | 41J | |
| 70＜t≤100 | Min 355 Mpa | 490-620 Mpa | 21% | 34J | 50J | |
| Grade | DNV | GL | LR | BV | CCS | NK | KR | RINA |
| ABS EH36 | NV E36 | GL-E36 | LR/EH36 | BV/EH36 | CCS/E36 | K E36 | R E36 | RI/E36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmer Steel is one of the most prominent manufacturers and suppliers of superior quality ABS EH36 Shipbuilding Steel Sheet and Plates in Manama, Bahrain. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| EH36 | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
The primary use for ABS EH36 steel is in the construction of large seafaring vessels, including container ships, oil tankers, and bulk carriers. Its high strength-to-weight ratio is crucial for building the hulls, decks, and other key structural parts that must withstand immense ocean pressures and dynamic loads. This steel is also widely specified for offshore platforms and other marine structures, proving indispensable for projects that demand unwavering resilience against corrosive saltwater and unpredictable weather conditions.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
