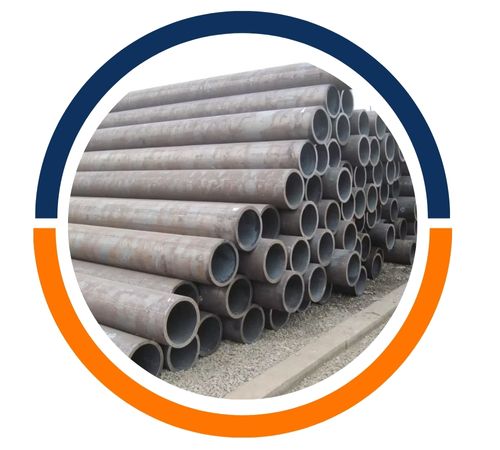

Nestled in the heart of Manama’s industrial landscape, Ahmer Steel has established itself as a trusted name for robust and reliable piping solutions. Our specialization lies in providing high-grade Alloy Steel P5 pipes, meticulously sourced and supplied to meet the rigorous demands of modern industry. We understand that the backbone of any major project is quality materials, which is why we are committed to delivering products that ensure durability, performance, and peace of mind for our clients across Bahrain and beyond.
The strength of Alloy Steel P5 pipes comes from a specific chemical composition, primarily a blend of chromium and molybdenum. This formulation gives the pipes excellent mechanical properties, including enhanced tensile strength and remarkable resistance to creep, which is the gradual deformation under sustained high temperatures. This inherent toughness makes them capable of handling significant internal pressures and thermal stress, ensuring they perform reliably in challenging environments where ordinary steel would falter.
SA335 P5 Standard | ASTM A335 P5, SA335 P5 (with IBR Test Certificate) |
A335 P5 Size | 1/2” NB to 36” NB |
A335 P5 Thickness | 3-12mm |
A335 P5 Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
SA335 P5 Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
A335 P5 Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
Craft | Cold rolled and Cold drawn |

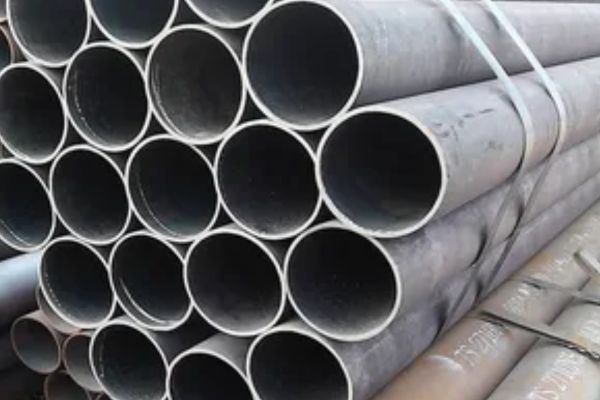

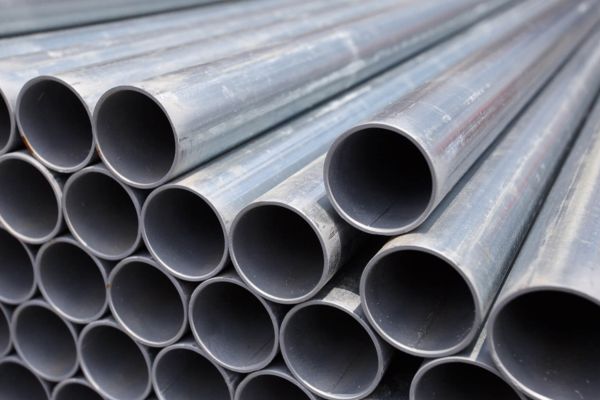

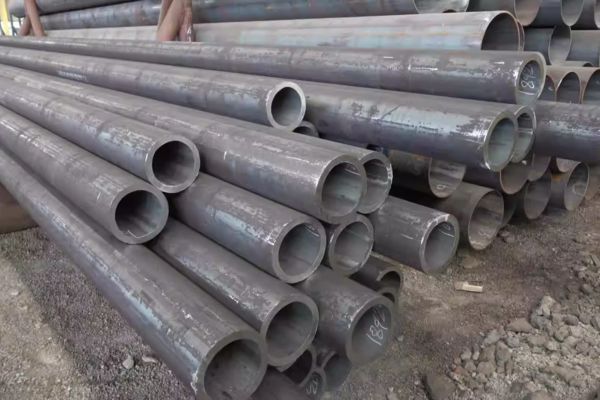

SA335 P5 Type | Seamless / ERW / Welded / Fabricated |

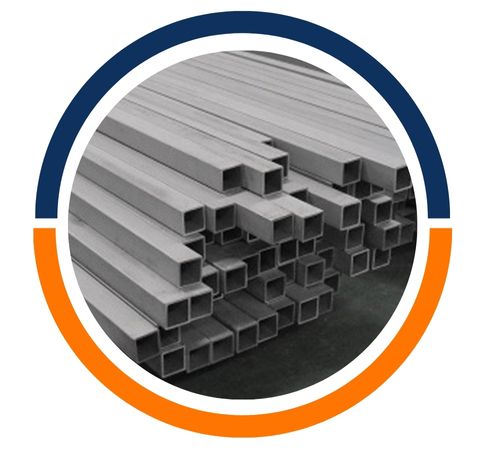

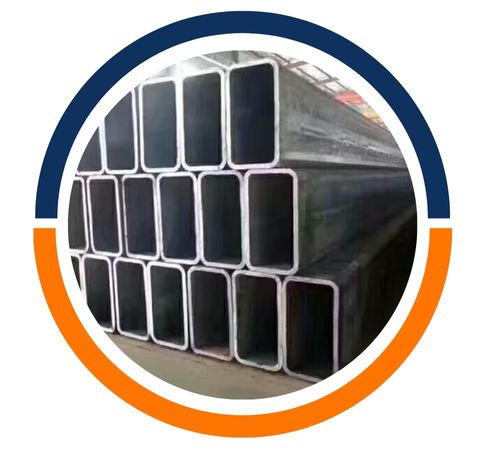

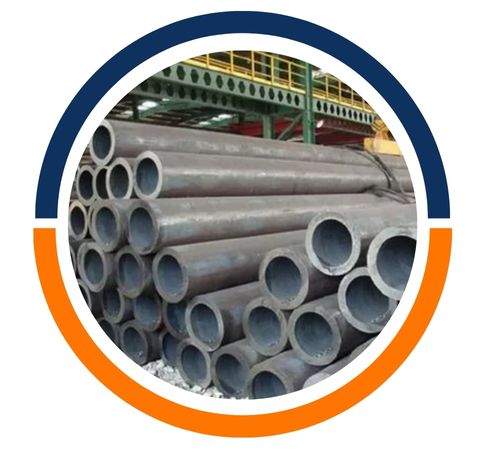

A335 P5 available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
SA335 P5 Length | Standard Double & In Cut length also. |
A335 P5 End | Plain End, Beveled End, Treaded |
Specialized in | Large Diameter SA335 P5 |
Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Alloy Steel P5 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 4.00 – 6.00 | 0.30 – 0.60 | 0.45 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmer Steel is a major manufacturer and a supplier of premium Alloy Steel P5 pipe in Manama, the Bahrain. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|
| A335 P5 | SA335 P5 | STPA 25 | K41545 | 3604 P1 625 | 2604 III TS37 | ABS 14 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P5 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
These exceptional characteristics make Alloy Steel P5 pipes indispensable in sectors where failure is not an option. You will find them extensively used in power generation plants, facilitating the flow of superheated steam, and in refineries and petrochemical facilities managing corrosive process streams. They are also crucial for pipelines in oil and gas extraction and in various high-temperature industrial heating systems, proving their worth wherever strength and heat resistance are paramount for safety and operational continuity.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
