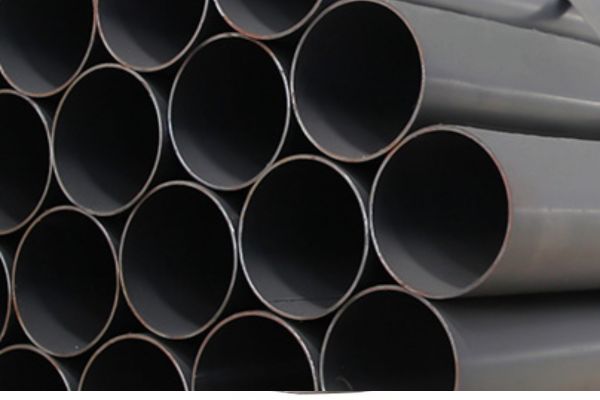

Located in the industrial heart of Manama, Bahrain, Ahmer Steel has built a reputation as a trusted manufacturer and supplier of robust steel solutions. We are particularly proud of our API 5L Grade B PSL1 Pipe, a product engineered to meet the essential demands of fluid transport. This pipe line represents our commitment to reliability, offering a dependable option for projects that require a balance of strength and cost-effectiveness, all backed by our local expertise and dedication to customer service in the region.
The API 5L Grade B PSL1 pipe is formulated with a specific chemical composition to ensure its fundamental strength, primarily relying on carbon, manganese, and other elements in controlled amounts. This results in solid mechanical properties, including a minimum yield strength of 35,000 psi, which provides the resilience needed to handle internal pressures and structural loads. It’s this straightforward, proven combination of chemistry and strength that makes it a go-to choice for less demanding environments.
| API 5l Gr B Psl2 ERW and HFW | 1/2” NB – 24” NB |

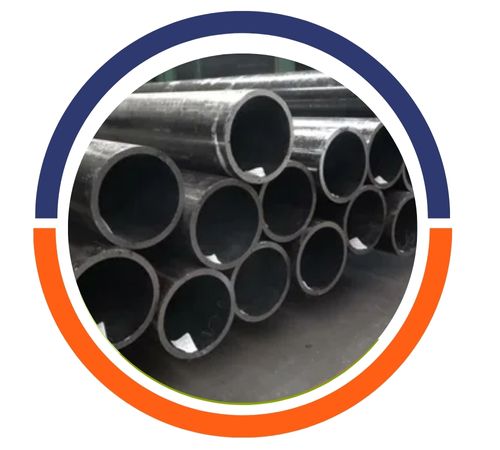

| API 5L Gr B SAW | 16″ – 100″ NB |

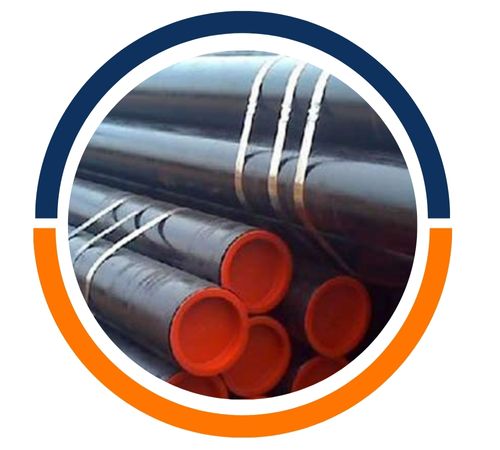

| API 5L Grade B Psl1 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |

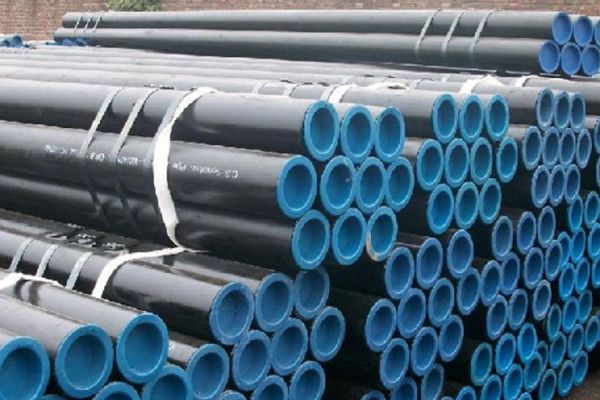

| API 5L Grade B Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2″ – 26″) |
| OD | 21.3MM ~ 762MM |
| Killed Carbon Steel API 5L Pipe end | BOE-Beveled One End TOE -Treaded One End, BE -Beveled end, BLE -Bevel large end, BSE -Bevel small end, TBE -Treaded Both Ends, BBE -Bevel both ends, POE -Plain One End, PBE -Plain Both Ends, API 5L Grade B Welded Pipe |
| Wall Thickness of API 5L Grade B Pipe | 4.5mm to 60mm |
| API 5L Grade B Material Cutting Techniques | Sawing, Laser, Burrless Cuts, Tapping, Water-Jet, API 5L Gr B Nace Pipe |
| Different methods used by API 5L Grade B Pipe manufacturers’ | Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), 100% X Ray/ Gamma Ray Welded Welded, CDW, Submerged Arc Welded (SAW), Extrusion, Fabricated, Seamless, Electro Fusion Seam Welded (EFSW), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW), Hot Finish Seamless (HFS), API 5L Grade B Schedule 80 Pipe |
| Surface Treatment of API 5L Grb Pipe |
|
| Pipe API 5L Gr B Schedule | SCH-40, SCH-80S, SCH-40S, SCH-10S, SCH-5, SCH-80, SCH160, SCH-XS, SCH-STD, SCH-5S, SCH-10, SCH-XXS, API 5L Gr B Smls Pipe |
| L245 Grade B Pipe Length | 12000mm, 20FT, Single Random Length (SRL), 6000mm, 40FT, DRL, Double Random Length (DRL), 2000mm, Custom Length SRL, 3000mm, API 5L Gr.B PSL2- SAW Pipes |
| Chemical Composition % | ||||||||
| PSL1 | PSL2 | |||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| A | 0.22 | 0.90 | 0.03 | 0.03 | 0.22 | 1.20 | 0.025 | 0.015 |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| X42 | 0.26 | 1.30 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X46 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X52 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X56 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X60 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.45 | 0.025 | 0.015 |
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 0.22 | 1.65 | 0.025 | 0.015 |
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 0.22 | 1.85 | 0.025 | 0.015 |
| PSL 1 | |||||
|---|---|---|---|---|---|
| Grade | Tensile Strength(Min.) | Yield Strength(Min.) | Elongation | ||
| MPa | Ksi | MPa | Ksi | E=1944 A 0.2 /U 0.9 | |
| B | 414 | 60 | 241 | 35 | |
| X52 | 455 | 66 | 359 | 52 | |
| X60 | 434 | 63 | 414 | 60 | |
| X65 | 455 | 66 | 448 | 65 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmer Steel is a top manufacturer and supplier of high-quality API 5L Grade B PSL1 Pipe products in Manama, Bahrain. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
The primary use for this pipe is in the conveyance of oil, water, and natural gas, often serving as the backbone for gathering lines and distribution networks. Its reliable performance also makes it suitable for various structural and mechanical applications beyond the energy sector, including piling and fabrication projects. For contractors and engineers looking for a proven, economical solution for low-pressure and non-critical services, API 5L Grade B PSL1 offers a trusted and widely accepted option for getting the job done effectively.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
