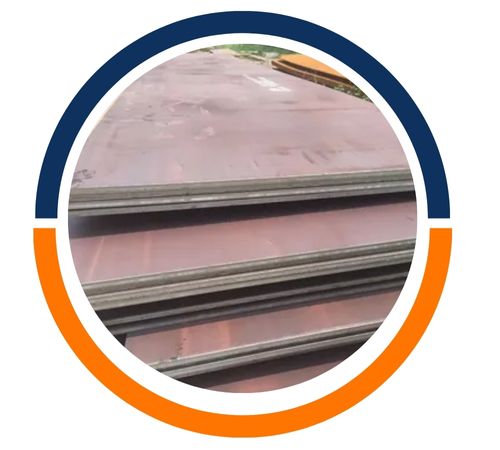

From the heart of Manama’s industrial sector, Ahmer Steel stands as a trusted partner for robust material solutions. We specialize in supplying high-quality ARCELOR 400 sheet and plates, a cornerstone for projects demanding exceptional strength and reliability. Our team is dedicated to ensuring your construction or manufacturing venture is built on a foundation of superior-grade steel, sourced and delivered with the precision and integrity our clients have depended on for years. We understand that the quality of your materials directly impacts the success of your work.

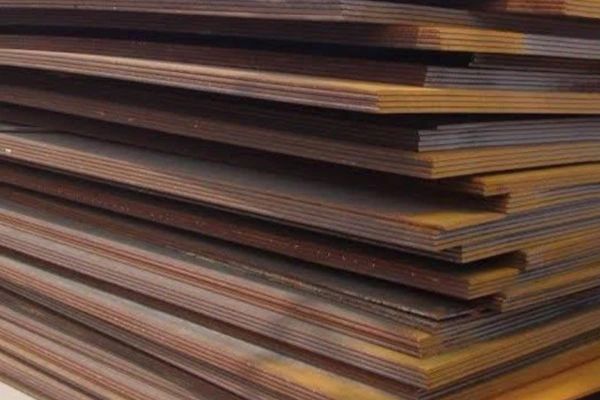

ARCELOR 400 sheet and plate is a versatile structural steel prized for its consistent performance. Its chemical composition is carefully balanced to deliver a minimum yield strength of 400 MPa, meaning it can withstand significant force before any permanent deformation occurs. This high strength is complemented by good toughness and weldability, making it a practical and efficient choice for fabricators. Essentially, it offers an excellent balance of durability and workability, allowing for the creation of strong, resilient structures without unnecessary complication during the building process.
Item: ARCELOR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Internal grade | Thk (mm) | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max |
| SRDQH40 | Up to 20 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 40 ppm | 0.45 |
| SRDQH41 | 20.1 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 40 ppm | 0.48 |
| SRDQH42 | 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.57 |
| SRDQH43 | 50.1 – 70.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.65 |
| HARDNESS (BHN) | YS (MPa) | UTS (MPa) | %El (L0=50 mm) | Impact at -30°C (In Joules) | |
| Specified values | 370 – 430 | 900Min | 1100 | 10 | 30J Min (Longitudinal to rolling) |
| Typical indicative values for 20 mm | 390 – 410 | 1050 | 1240 | 12 | 40J |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
The inherent strength of ARCELOR 400 makes it ideally suited for a wide array of demanding applications. You will commonly find it forming the skeletons of modern buildings, bridges, and industrial facilities where structural integrity is paramount. It is also extensively used in the construction of heavy machinery, agricultural equipment, and various transportation vehicles. Essentially, any project that requires a dependable material to bear heavy loads or resist intense stress can benefit from the reliable performance of these sheets and plates, ensuring long-lasting durability and safety.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
