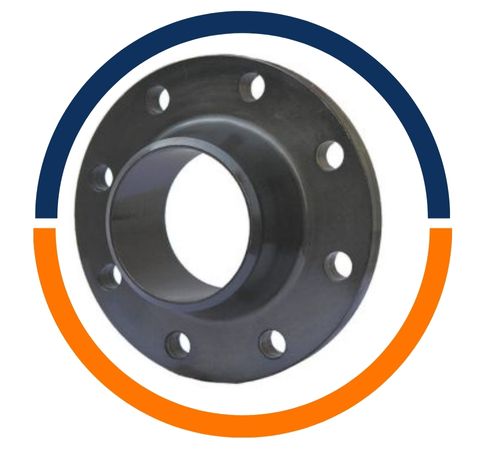

Nestled in the heart of Manama’s industrial landscape, Ahmer Steel stands as a trusted partner for robust industrial solutions. We specialize in providing high-quality Carbon Steel A182 Flanges, a cornerstone component for demanding piping systems. Our commitment is to deliver products that meet rigorous international standards, ensuring reliability and longevity for our clients’ most critical projects. We understand that the integrity of your operations depends on the quality of your materials, which is why precision and durability are at the core of everything we supply.
These flanges are crafted from carbon steel, a material prized for its exceptional strength and resilience. The specific composition ensures they can handle high-pressure environments with ease, offering a dependable performance that industries count on. Their mechanical properties, including excellent tensile strength and good impact resistance, make them suitable for a wide range of temperatures and stresses. This combination of a sturdy carbon steel base and carefully controlled manufacturing results in a component built for endurance and reliability.
Specifications :Â ASTM A182 / ASME SA182
Dimensions :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ to 36″
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

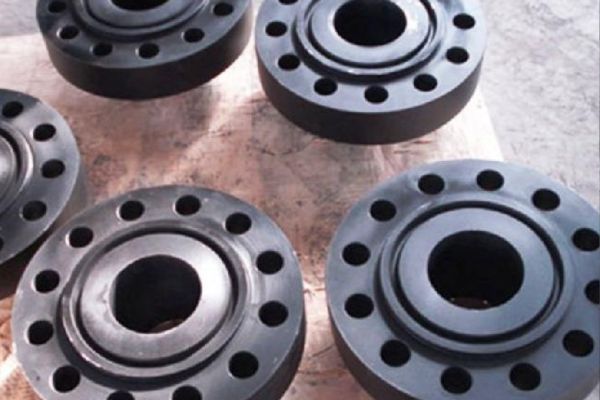

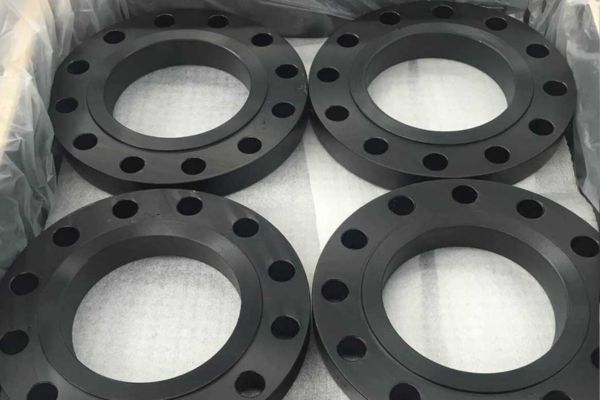

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmer Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A182 Flanges in Manama, Bahrain. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

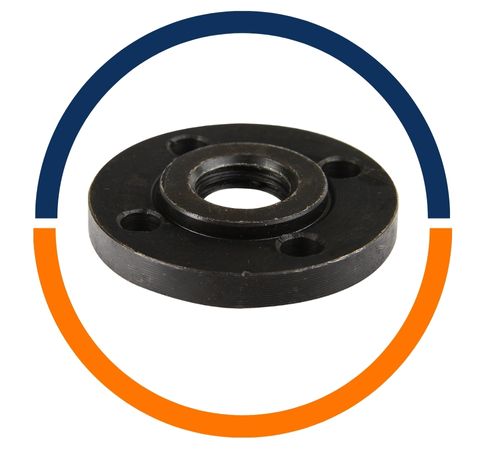

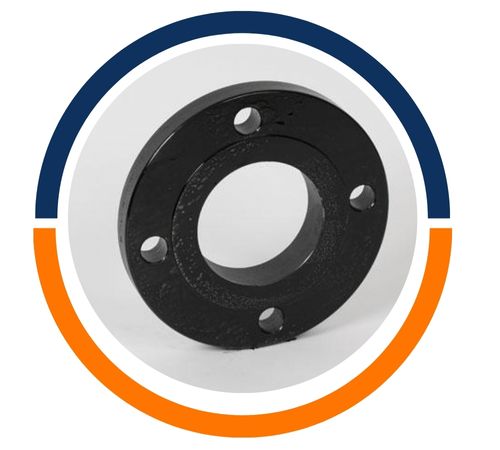

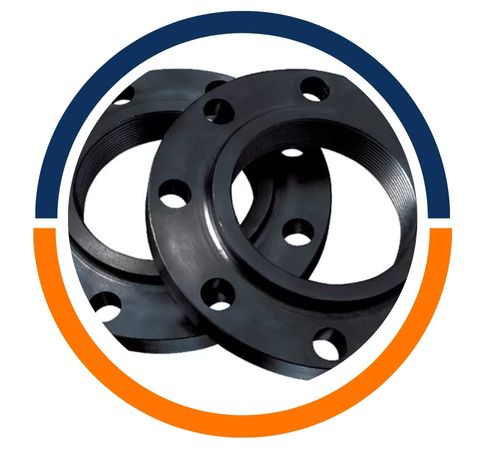

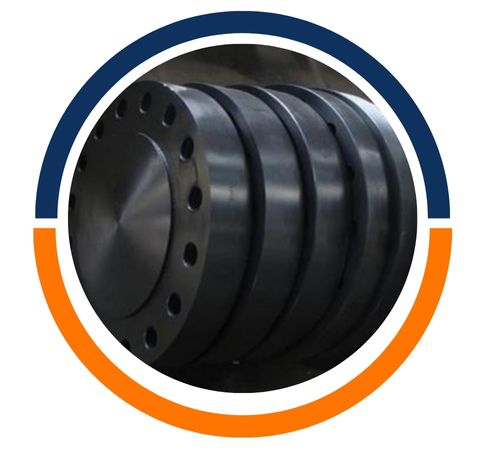

| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Size in inches | Outer Dia. | Size in millimeter | RF Height | Flange Thick. | RF Diam. | PCD | Bolt Size UNC | No of Bolts | Machine Bolt Lengths | Hole Size | RF Stud Length | ISO Stud Size | Weight in kg |
| Â | A | Â | D | B | C | E | Â | Â | Â | Â | Â | Â | Â |
| 1/2 | 90 | 15 | 2 | 9.6 | 34.9 | 60.3 | 1/2 | 4 | 50 | 5/8 | 55 | M14 | 0.9 |
| 3/4 | 100 | 20 | 2 | 11.2 | 42.9 | 69.9 | 1/2 | 4 | 50 | 5/8 | 65 | M14 | 0.9 |
| 1 | 110 | 25 | 2 | 12.7 | 50.8 | 79.4 | 1/2 | 4 | 55 | 5/8 | 65 | M14 | 0.9 |
| 1 1/4 | 115 | 32 | 2 | 14.3 | 63.5 | 88.9 | 1/2 | 4 | 55 | 5/8 | 70 | M14 | 1.4 |
| 1 1/2 | 125 | 40 | 2 | 15.9 | 73 | 98.4 | 1/2 | 4 | 65 | 5/8 | 70 | M14 | 1.8 |
| 2 | 150 | 50 | 2 | 17.5 | 92.1 | 120.7 | 5/8 | 4 | 70 | 3/4 | 85 | M16 | 2.3 |
| 2 1/2 | 180 | 65 | 2 | 20.7 | 104.8 | 139.7 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 3.2 |
| 3 | 190 | 80 | 2 | 22.3 | 127 | 152.4 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 4.1 |
| 3 1/2 | 215 | 90 | 2 | 22.3 | 139.7 | 177.8 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 5.9 |
| 4 | 230 | 100 | 2 | 22.3 | 157.2 | 190.5 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 7.7 |
| 5 | 255 | 125 | 2 | 22.3 | 185.7 | 215.9 | 3/4 | 8 | 85 | 7/8 | 95 | M20 | 9.1 |
| 6 | 280 | 150 | 2 | 23.9 | 215.9 | 241.3 | 3/4 | 8 | 85 | 7/8 | 100 | M20 | 11.8 |
| 8 | 345 | 200 | 2 | 27 | 269.9 | 298.5 | 3/4 | 8 | 90 | 7/8 | 110 | M20 | 20.5 |
| 10 | 405 | 250 | 2 | 28.6 | 323.8 | 362 | 7/8 | 12 | 100 | 1 | 115 | M24 | 32 |
| 12 | 485 | 300 | 2 | 30.2 | 381 | 431.8 | 7/8 | 12 | 100 | 1 | 120 | M24 | 50 |
| 14 | 535 | 350 | 2 | 33.4 | 412.8 | 476.3 | 1 | 12 | 115 | 1 1/8 | 135 | M27 | 64 |
| 16 | 595 | 400 | 2 | 35 | 469.9 | 539.8 | 1 | 16 | 115 | 1 1/8 | 135 | M27 | 82 |
| 18 | 635 | 450 | 2 | 38.1 | 533.4 | 577.9 | 1 1/8 | 16 | 125 | 1 1/4 | 145 | M30 | 100 |
| 20 | 700 | 500 | 2 | 41.3 | 584.2 | 635 | 1 1/8 | 20 | 140 | 1 1/4 | 160 | M30 | 130 |
| 24 | 815 | 600 | 2 | 46.1 | 692.2 | 749.3 | 1 1/4 | 20 | 150 | 1 3/8 | 170 | M33 | 196 |
The versatility of Carbon Steel A182 Flanges makes them indispensable across numerous sectors. You will find them forming secure connections in the intricate piping networks of oil and gas refineries, chemical processing plants, and power generation facilities. They are equally vital in water treatment systems and large-scale industrial plumbing, wherever a strong, leak-proof seal is non-negotiable. Essentially, in any environment that demands a connection capable of withstanding substantial pressure and harsh conditions, these flanges provide the trusted link that keeps operations running smoothly and safely.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
