Ahmer Steel, a trusted manufacturer and supplier based in Manama, Bahrain, proudly offers Carbon Steel API X60 5L PSL 1 Pipes, engineered for strength and reliability in demanding environments. Our commitment to stringent quality control and industry standards ensures that every pipe we supply meets the exacting requirements of the global energy sector. As a cornerstone of Bahrain’s industrial landscape, we provide robust solutions that clients depend on for critical infrastructure projects, solidifying our reputation for excellence and unwavering customer support in the heart of the Gulf.
These pipes are crafted from a specific carbon steel composition, primarily iron with controlled additions of manganese, carbon, and silicon, along with trace elements. This carefully balanced makeup grants the steel its notable mechanical properties, including a minimum yield strength of 60,000 psi. This ensures excellent toughness and the ability to withstand high internal pressures, making them well-suited for the challenging conditions of pipeline transport without compromising on ductility or weldability.
| Grade of material | X60 / L415 (N, M, Q, R) /td> |
| Standard | ISO 3183 L415/ API 5L X60 |

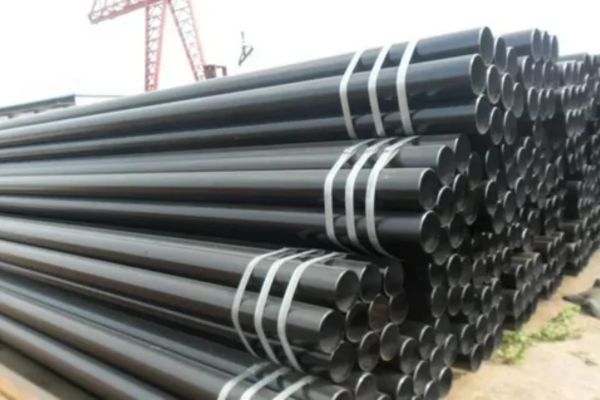

| API 5L X60 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |

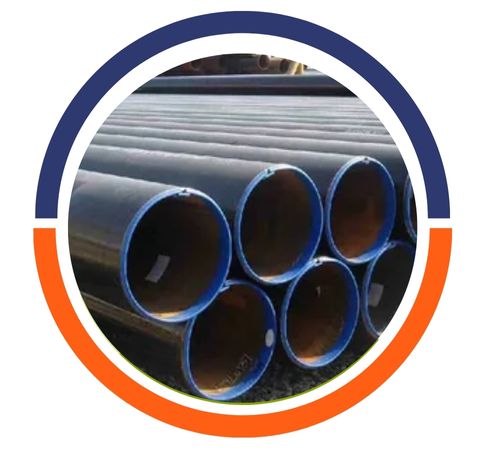

| X60 SAW | 16″ – 100″ NB |

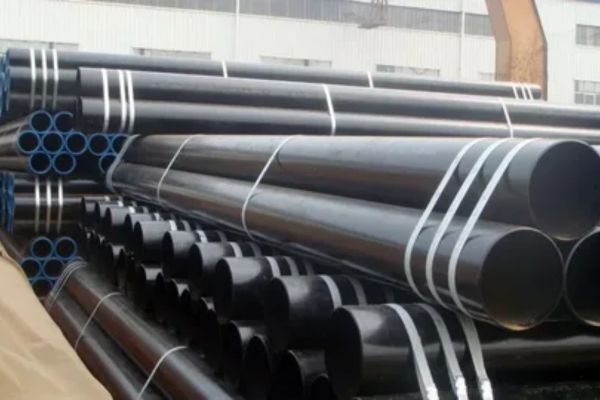

| API 5L X60 PSL2 ERW and HFW | 1/2” NB – 24” NB |

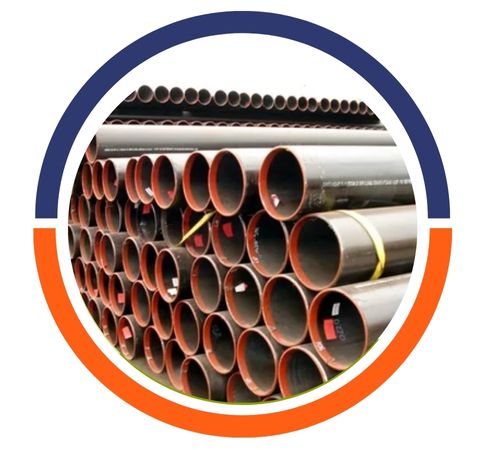

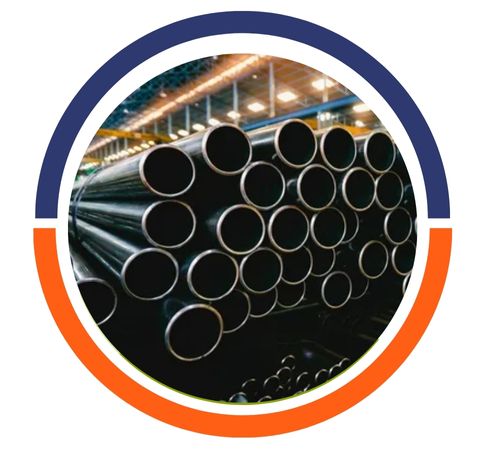

| Grade L415 X60 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X60 PSL1 Pipe end | Pub Joints, Coupling, Deburring, Flanged Ends, Grooved, Buttweld, Beveled End (BE), Square Cut, Thread Cutting, Cut Grooves, Squared Ends, Chamfering, Plain end (PE), Threaded Ends (Male & Female), Vibrator Grinding, Socket, Screwed |
| X60 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters |
| API 5L X60 Wall Thickness | SCH160, SCH-STD, SCH-XXS, SCH-XS, SCH40, SCH80, |
| PSL Level | |
| Coating for API 5L X60 Line Pipe | Black Painting, 3PE, lined pipe, Galvanized, CRA clad, FBE, Varnished, 3PP, 3LPE, Anti-Rust Oi, |

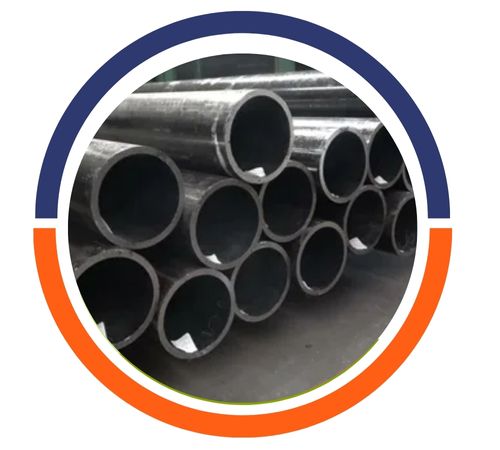

| Manufacturing process | Electro Fusion Seam Welded (EFSW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), Welded, Longitudinally Submerged Arc Welded (LSAW), Extrusion, Seamless, Horizontal Submerged Arc Welded (HSAW), Hot Finish Seamless (HFS) |
| Approvals | KNPC, Merkblatt W0, PED, EIL, HAF 604, L&T, BP, ISO 17025 for Laboratories, IBR, NORSOK M-650, Saudi Aramco, AD2000, PED 97/23/EC, ONGC, Shell |
| Mass fraction, based upon heat and product analysis a | |||||||
| CS PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28e | 1.40e | – | 0.030 | 0.030 | f | f | f |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 520(75 400) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X60 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Ahmer Steel is a leading supplier of high-quality Carbon Steel API X60 5L PSL 1 Pipes products in Manama, Bahrain. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
The primary application for API X60 5L PSL 1 Pipes is in the construction of long-distance, high-pressure transmission pipelines for oil and natural gas. Their robust design makes them the ideal choice for gathering lines that bring resources from the wellhead and for extensive mainline systems that traverse diverse terrains. Beyond the energy sector, these pipes are also effectively employed in structural piling, and in infrastructure for moving other fluids like water or slurry in industrial settings where durability is a key requirement.
