Situated in the heart of Manama’s industrial landscape, Ahmer Steel has built a strong reputation as a trusted partner for high-quality carbon steel bolts. We understand that the integrity of any project rests on the reliability of its smallest components, which is why we take immense pride in supplying bolts that meet stringent standards. Our clients, from major contractors to local workshops, depend on us for consistent quality and timely delivery, making Ahmer Steel the go-to source for durable fastening solutions in Bahrain and beyond.
The composition of our carbon steel bolts is carefully controlled, primarily consisting of iron and carbon, which provides an excellent balance of strength and affordability. This fundamental makeup is often enhanced with trace elements to tailor the bolts for specific demands. As a result, they possess impressive mechanical properties, including high tensile strength that allows them to withstand significant stretching forces without failing, coupled with good ductility that provides a degree of flexibility under load, preventing sudden brittle fractures.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

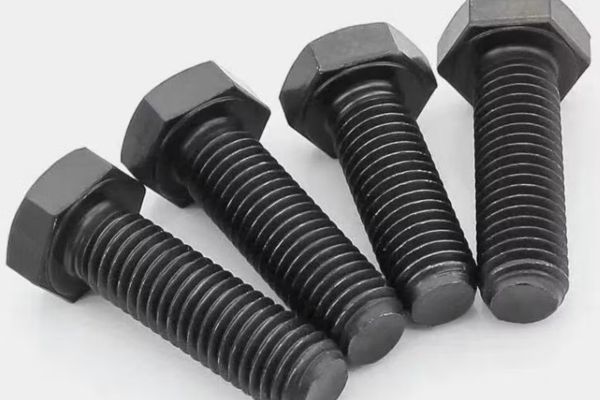

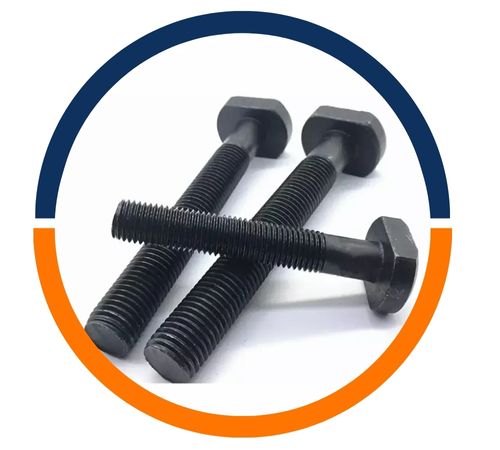

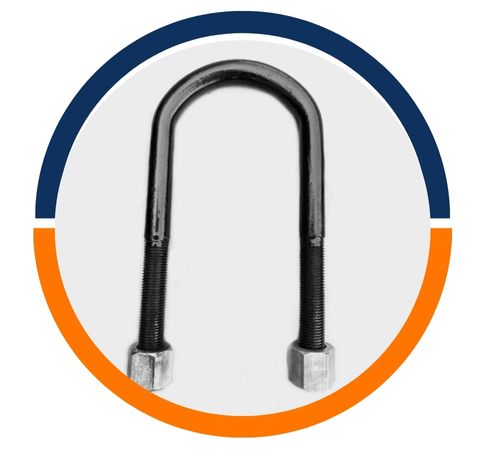

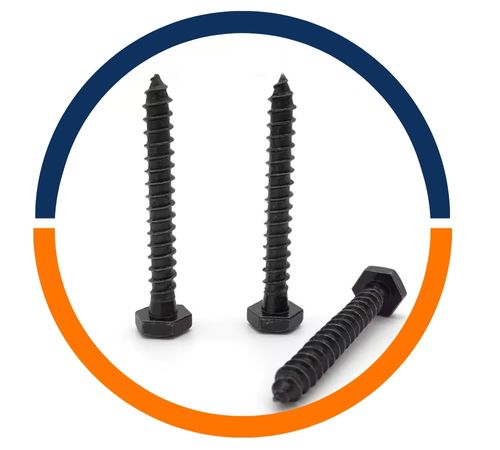

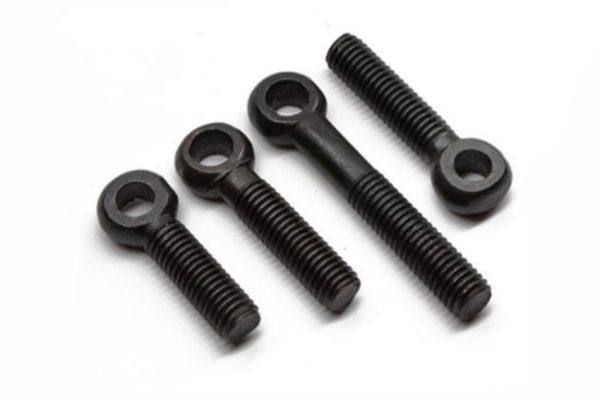

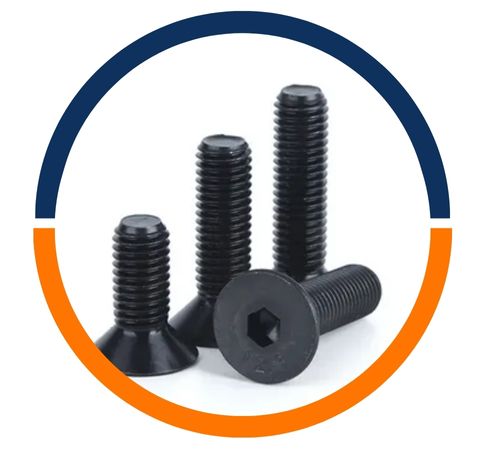

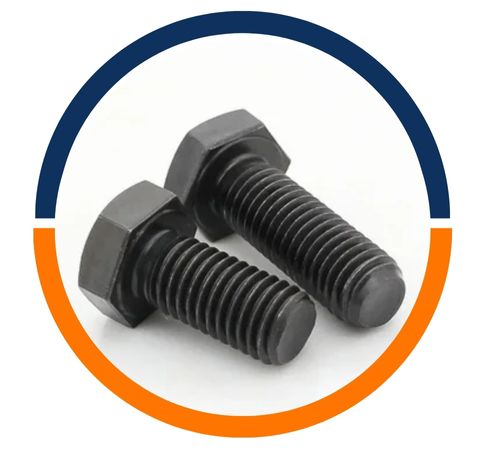

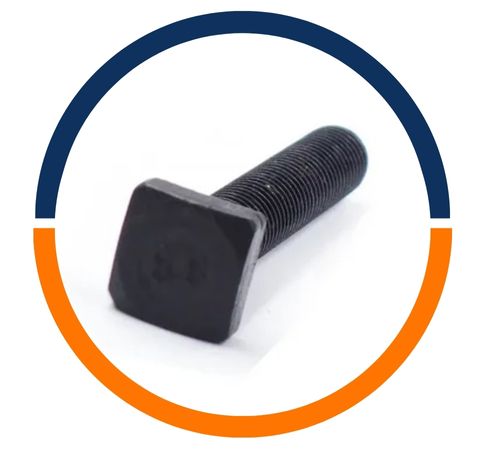

Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |

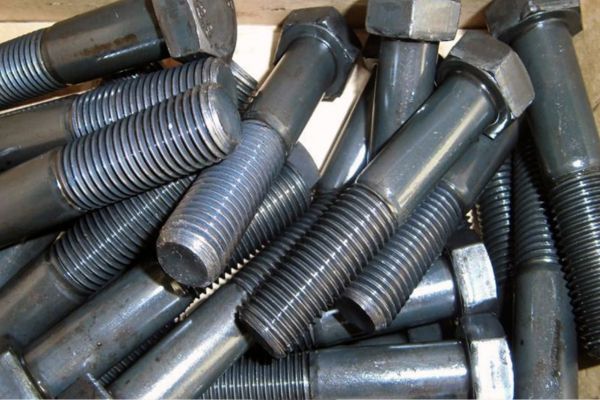

| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Bolts in Manama, Bahrain. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Bolt needs!
| Heavy Hex Bolt Diameter | Â D | Â F | Â C | Â H | |||||
|  Body Diameter  |  Width Across Flats |  Width Across Corners |  Height | ||||||
|  Max |  Basic |  Max    |  Min     |  Max |  Min |  Basic |  Max    |  Min    | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |
| Nominal or Basic Product Diameter | E | F | G | H | J | LT (Thread Length) | Y | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Wrenching Height | For Bolt Lengths | For Bolt Lengths | Transition Thread Length | ||||||||
| 1/4 | 0.25 | 0.25 | 0.245 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 | 0.106 | 0.750 | 1.000 | 0.250 |
| 5/16 | 0.3125 | 0.3125 | 0.3065 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 13/64 | 0.211 | 0.195 | 0.140 | 0.875 | 1.125 | 0.278 |
| 3/8 | 0.375 | 0.375 | 0.369 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 15/64 | 0.243 | 0.226 | 0.160 | 1.000 | 1.250 | 0.312 |
| 7/16 | 0.4375 | 0.4375 | 0.4305 | 5/8 | 0.625 | 0.612 | 0.722 | 0.698 | 9/32 | 0.291 | 0.272 | 0.195 | 1.125 | 1.375 | 0.357 |
| 1/2 | 0.5 | 0.5 | 0.493 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 | 0.215 | 1.250 | 1.500 | 0.385 |
| 9/16 | 0.5625 | 0.5625 | 0.5545 | 13/16 | 0.812 | 0.798 | 0.938 | 0.910 | 23/64 | 0.371 | 0.348 | 0.250 | 1.375 | 1.625 | 0.417 |
| 5/8 | 0.625 | 0.625 | 0.617 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 25/64 | 0.403 | 0.378 | 0.269 | 1.500 | 1.750 | 0.455 |
| 3/4 | 0.75 | 0.75 | 0.741 | 1-1/8 | 1.125 | 1.100 | 1.299 | 1.254 | 15/32 | 0.483 | 0.455 | 0.324 | 1.750 | 2.000 | 0.500 |
| 7/8 | 0.875 | 0.875 | 0.866 | 1-5/16 | 1.312 | 1.285 | 1.516 | 1.465 | 35/64 | 0.563 | 0.531 | 0.378 | 2.000 | 2.250 | 0.556 |
| 1 | 1 | 1 | 0.99 | 1-1/2 | 1.500 | 1.469 | 1.732 | 1.675 | 39/64 | 0.627 | 0.591 | 0.416 | 2.250 | 2.500 | 0.625 |
| 1-1/8 | 1.125 | 1.125 | 1.114 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 11/16 | 0.718 | 0.658 | 0.461 | 2.500 | 2.750 | 0.714 |
| 1-1/4 | 1.25 | 1.25 | 1.239 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 25/32 | 0.813 | 0.749 | 0.530 | 2.750 | 3.000 | 0.714 |
| 1-1/2 | 1.5 | 1.5 | 1.488 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 15/16 | 0.974 | 0.902 | 0.640 | 3.250 | 3.500 | 0.833 |
You’ll find these bolts at work in countless scenarios, forming the hidden skeleton of modern infrastructure. They are essential for assembling structural steel frames in buildings and bridges, securing heavy machinery on factory floors, and fastening components in automotive and shipbuilding applications. Their versatility also extends to everyday projects like constructing shelving units, fencing, and garden equipment. Essentially, wherever there’s a need for a strong, dependable, and economical fastening solution, a carbon steel bolt from Ahmer Steel is often the perfect choice.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
