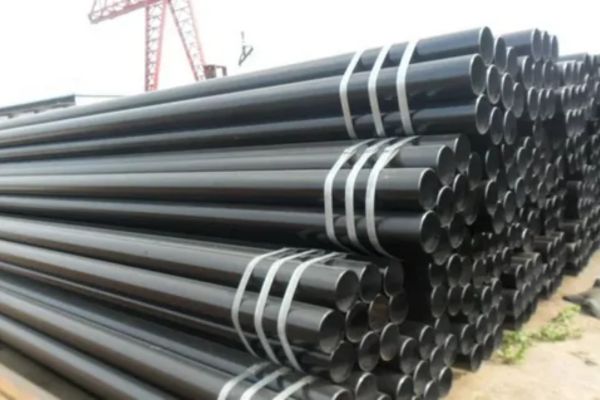

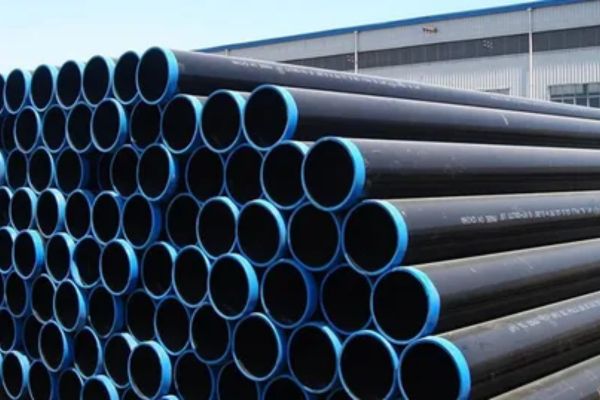

Carbon Steel EN 10216-2 Pipe is a high-grade seamless steel pipe offered by a reputable manufacturer and supplier in Manama, Bahrain, known for delivering reliable solutions for high-temperature and high-pressure environments. Designed to meet European standards, EN 10216-2 pipes offer superior mechanical strength, excellent heat resistance, and dependable performance in critical industrial applications. These pipes are widely used in boilers, pressure vessels, and heat exchanger systems due to their outstanding durability and structural stability. Manufactured with precision and strict quality control, Carbon Steel EN 10216-2 Pipes ensure long service life and consistent performance in demanding operating conditions.
Carbon Steel EN 10216-2 Pipes contain carbon, manganese, phosphorus, sulfur, and alloying elements such as molybdenum and chromium, depending on the grade. This composition enhances heat resistance, strength, and corrosion performance. Mechanically, these pipes provide high tensile strength, superior yield strength, and excellent toughness, allowing them to withstand extreme temperatures and internal pressure. The seamless design ensures uniformity and reliable structural integrity. Their strong resistance to creep, oxidation, and thermal stress makes EN 10216-2 pipes ideal for high-temperature boiler and pressure system applications.
| Standard | : | EN 102ie-2 |
| EN 10216 Steel Pipe Materials | : | P195GH, P235GH, P265GH |
| EN 10216 Steel Pipe Outside Diameter | : | 10.2mm – 711mm |
| EN 10216 Steel Pipe Wall Thickness | : | 1.6mm – 100mm |
| EN 10216 Steel Pipe Delivery Conditon | : | Normalized |
| EN 10216 MOQ | : | 2 Tons per size |
| EN 10216 Pipe Shippment | : | 20’GP/40’GP/40’HQ FCL or LCL |
| EN 10216 Pipe Delivery | : | Depends on the stock availability and actual order quantities. |
| Steel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| EN P195GH | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P235GH | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P265GH | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| 16Mo3 | 0,12- 0,20 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30 | 0,25- 0,35 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 14MoV6-3 | 0,10- 0,15 | 0,15- 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30- 0,60 | 0,50- 0,70 | 0,30 | >\= 0,020 | 0,30 | – | 0,22-0,28 | – | – |
| 13CrMo4-5 | 0,15 | 0,50- 1,00 | 0,30- 0,60 | 0,025 | 0,020 | 1,00- 1,50 | 0,45- 0,65 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 10CrMo9-10 | 0,10- 0,17 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,70- 1,15 | 0,40- 0,60 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| Mechanical properties | |||||||||||||
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 | Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<\=16 | 16<T<\=40 | 40<t<\=60 | 60<T<\=60 | I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| EN P195GH | 195 | – | – | – | 320- 440 | 27 | 25 | – | 40 | 28 | – | 27 | |
| EN P235GH | 235 | 225 | 215 | – | 360- 500 | 25 | 23 | – | 40 | 28 | – | 27 | |
| EN P265GH | 265 | 255 | 245 | – | 410- 570 | 23 | 21 | – | 40 | 28 | – | 27 | |
| 16Mo3 | 280 | 270 | 260 | – | 450- 600 | 22 | 20 | 40 | – | – | 27 | – | |
| 14MoV6-3 | 320 | 320 | 310 | – | 460- 610 | 20 | 18 | 40 | – | – | 27 | – | |
| 13CrMo4-5 | 290 | 290 | 280 | – | 440- 590 | 22 | 20 | 40 | – | – | 27 | – | |
| 10CrMo9-10 | 280 | 280 | 270 | – | 480- 630 | 22 | 20 | 40 | – | – | 27 | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10216-2 Pipe products in Manama, Bahrain. Specializing in premium steel materials, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure outstanding performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10216-2 Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
Carbon Steel EN 10216-2 Pipes are widely used in industries that require durable and heat-resistant piping systems. Common applications include boilers, superheaters, steam pipelines, pressure vessels, and heat exchangers. These pipes are essential in power plants, oil & gas facilities, chemical processing units, and refineries where high-temperature fluid transport is critical. Their excellent pressure-handling capability and long-term stability make them suitable for critical operations in energy production and industrial processing. EN 10216-2 Pipes provide reliable performance,
