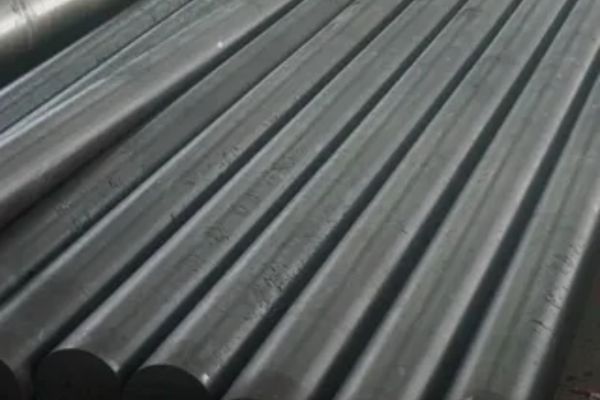

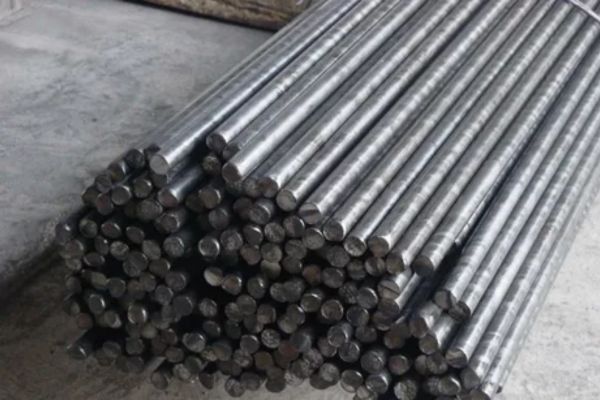

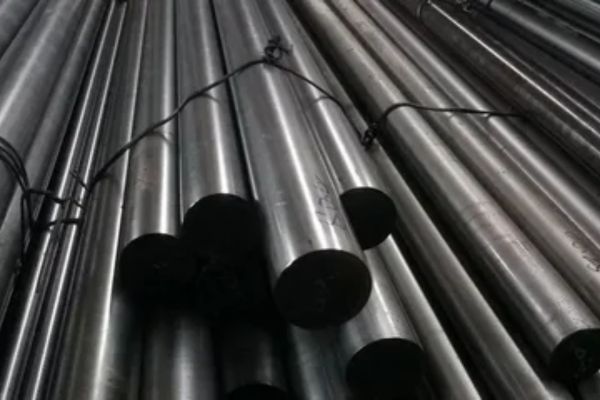

Nestled in the industrial heart of Manama, Ahmer Steel has built a strong reputation as a trusted manufacturer and supplier of high-quality metal products. Among their premium offerings are Carbon Steel EN-19 Bars, known for their exceptional durability and strength. The company is committed to providing reliable materials that meet rigorous international standards, making them a go-to partner for industries across Bahrain and beyond who require components that can withstand demanding conditions and perform consistently.
The composition of EN-19 is carefully balanced, primarily featuring chromium and manganese, which gives this carbon steel its notable characteristics. This specific blend results in bars with impressive tensile strength and excellent toughness. Perhaps its most valued mechanical property is its responsiveness to heat treatment, allowing it to be hardened to achieve superior wear resistance. This makes the material not just strong, but also exceptionally durable against abrasion and impact over a long service life.
| Grade Chart | en19 |
|---|---|
| Specification List | BS 970 1955 EN |
| Round bar size Chart in MM | Dia: 3-~800mm |
| Hex Bar size Chart in MM | 2-100mm A/F |

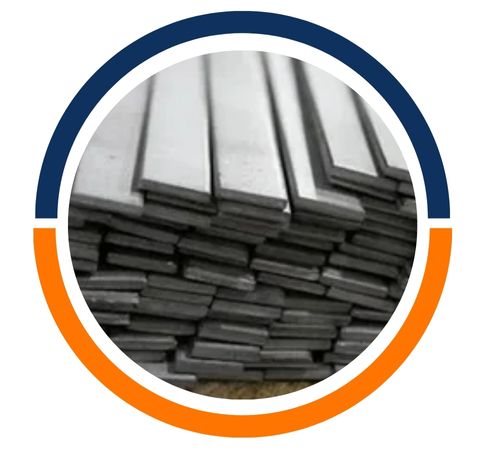

| Flat bar size Chart in MM | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

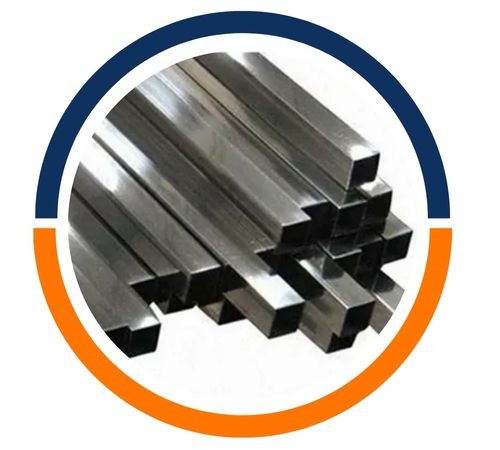

| Square bar size Chart in MM | 4 to 100mm |
| Angle bar size Chart in MM | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar in MM | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar in MM | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Sizes in MM | 1/2″ to 495mm DIA |
| Rectangles Size Chart in MM | 33 x 30mm to 295 x 1066mm |
| Finishes | centreless ground, Cold (bright) drawn, smooth turned, slit rolled edge, peeled,hot rolled, Rough Turned, hot rolled annealed, Bright, Grinding, Polish, Centreless Ground & Black |
| Tolerance Chart | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface Finish | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline, Polished |
| Condition | annealed, Hardened & tempered |

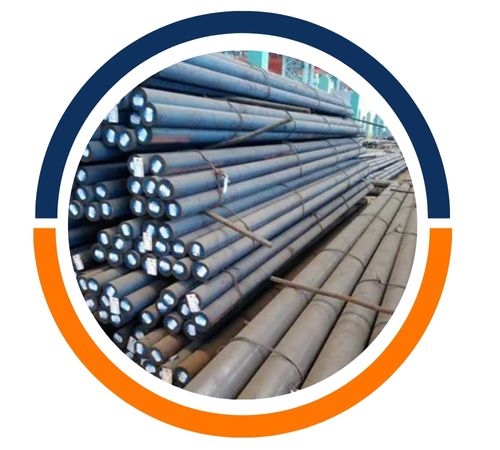

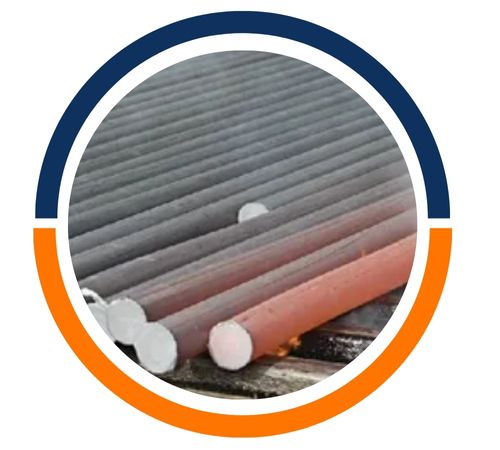

| Technique | Cold Drawn, en1a Hot Rolled, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650 Milimeter |

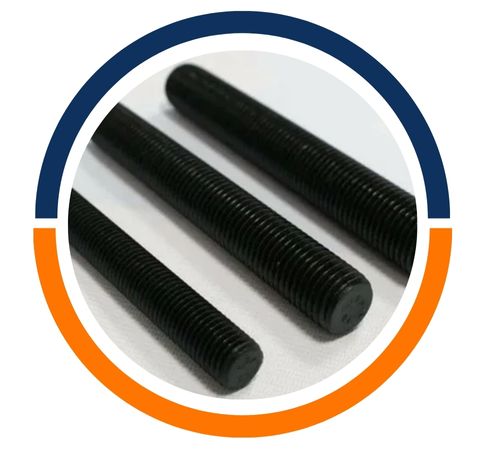

| Forms | Round, en8 Welding Rod, Rod, T-Bar, Precision Ground Bar, Channel Bar, Flat Bar, Blocks, Square, Round Rod, Hollow, Rings, Triangle, Hex (A/F), Rectangle, Threaded, Profiles, Half Round Bar, Billet, I/H Bar, Ingot, Forging etc. |
| Our stockyad location for fast delivery across India | Dhanbad, Noida, Shivamogga, Thiruvananthapuram, Bhubaneswar, Tirunelveli, Ahmedabad, Tiruchirappalli, Pune, Mumbai, Chennai, Bengaluru, Coimbatore, Pimpri-Chinchwad, Agra, Hyderabad, Navi Mumbai |
| Grade | Mn | Si | C | Cr | P | Ni | S | Mo |
| EN – 19 | .50 – .80 | .10 – .35 | .35 – .45 | .90 – 1.40 | .040 | – | .040 | .20 – .40 |
| Standard | CS EN-19 |
| UNS | – |
| WERKSTOFF NR. | 42Cr4Mo2 |
| BS | 709M40 |
| IS | 40Cr4Mo3 |
| JIS | – |
| EN | EN19 |
| SAE/AISI | 4140,4142 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size Chart | Chucked true to Outer diameter | Chucked true to Inner Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OD, Milimeter | ID, Milimeter | Max. OD, Milimeter | Min. ID, Milimeter | Max. OD, Inch | Min. ID, Inch | Max. OD, Milimeter | Min. ID, Milimeter | Max. OD, Inch | Min. ID, Inch |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
You’ll often find EN-19 bars at work in demanding environments where failure is not an option. They are a fundamental component in the manufacture of high-strength axles, shafts, and gears for heavy machinery and automotive applications. The material’s reliability also makes it ideal for critical parts in engineering tools, presses, and construction equipment. Essentially, wherever a component must handle significant stress and resist wear without becoming brittle, EN-19 proves to be an outstanding and trusted choice for engineers and fabricators.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
