Welcome to Ahmer Steel, your trusted partner in Manama, Bahrain for premium steel solutions. We take pride in our reliable supply of Carbon Steel EN-36C Bars, a high-grade material renowned for its exceptional durability and performance. Our commitment lies in providing local industries with products that meet rigorous international standards, backed by our expertise and dedicated customer service. When you choose Ahmer Steel, you’re choosing a foundation of strength and trust for your most demanding projects, right from the heart of the Gulf.
The EN-36C grade is a case-hardening steel appreciated for its balanced composition, typically featuring a blend of chromium, nickel, and manganese. This specific chemistry allows it to develop a remarkably hard, wear-resistant surface after a heat treatment process, while maintaining a softer, tough core that can absorb significant impact and stress. This combination of a hard exterior and a ductile interior makes it uniquely capable of withstanding severe operational conditions without becoming brittle.
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

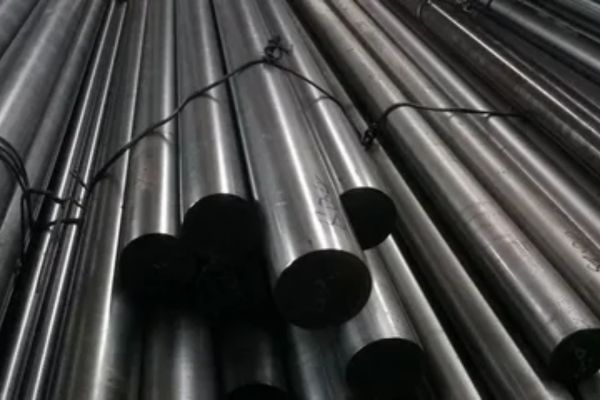

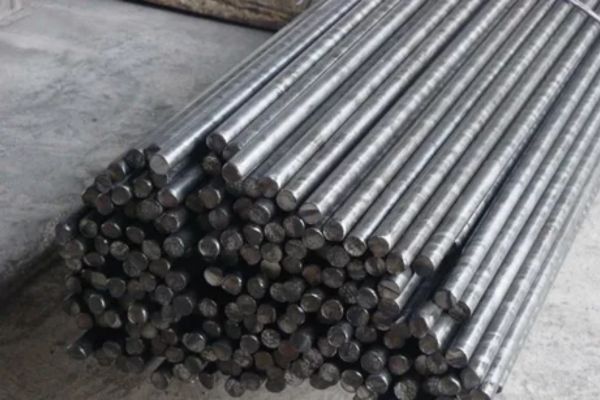

| Round Bars | 3.0 – 50.8 mm, Over 50.8 – 300mm |

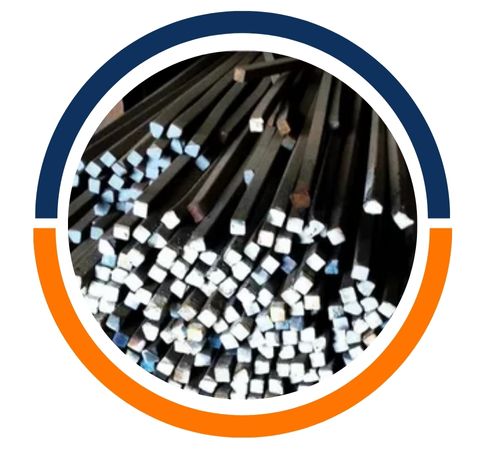

| Rectangular Bars | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Hex Bars | AF5.8mm–17mm |

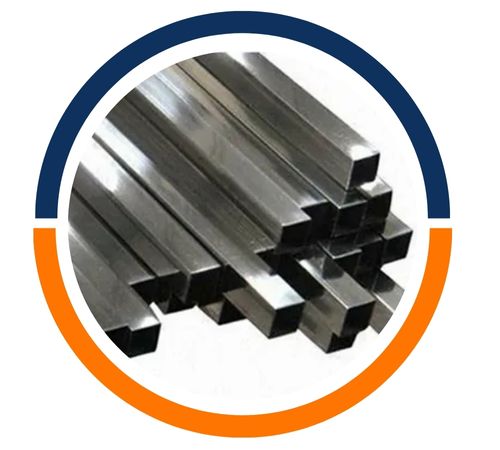

| Square Bars | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |

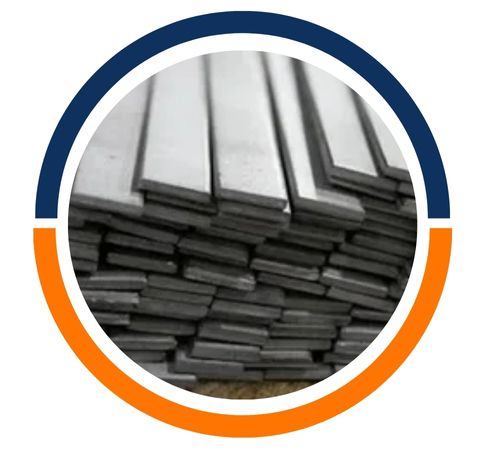

| Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | Bright, Polish & Black |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Grade | Chemical composition %: | |||||||
| C | Si | Mn | S | P | Cr | Ni | Cu | |
| En36C | 0.17-0.24 | 0.17-0.37 | 0.7-1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 |
| Chemical Composition | Application | |||||||||
| C | Si | Mn | P≤ | S≤ | CU≤ | Cr | Ni | Mo | V | |
| 0.43-0.49 | 0.15-0.35 | 0.60-0.90 | 0.03 | 0.035 | machine structural use, hand tools | |||||
| 0.53-0.59 | 0.17-0.37 | 0.50-0.80 | 0.03 | 0.03 | 0.2 | 0.25 | 0.3 | hand tools | ||
| 0.57-0.63 | 0.17-0.37 | 0.50-0.80 | 0.03 | 0.03 | 0.2 | 0.25 | 0.3 | hand tools | ||
| 0.13-0.18 | 0.15-0.35 | 0.60-0. | ||||||||
ULTIMATE TENSILE STRENGTH, S. (MPA) | 621 |
|---|---|
Modulus of elasticity, E (Gpa) | 204 |
Fatigue strength coefficient, of (Mpa) | 948 |
Fatigue strength exponent, b | -0.092 |
Fatigue ductility coeffient ,ef | 0.26 |
Fatigue ductility exponent,c | -0.445 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size Table in MM | Chucked true to Outside Dia in MM | Chucked true to Inside Dia in MM and Inch | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Outside Dia, Milimeter | Inside Dia, Milimeter | Maximum Outside Dia, Milimeter | Minimum. Inside Dia, Milimeter | Maximum Outside Dia, Inches. | Minimum. Inside Dia, Inches | Maximum Outside Dia, Milimeter | Minimum. Inside Dia, Milimeter | Maximum Outside Dia, Inches | Minimum. Inside Dia, Inches |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
This unique set of properties makes EN-36C bars perfectly suited for components that require exceptional surface hardness to resist abrasion, but also need high core strength to handle heavy loads. You will typically find this steel in critical parts like heavy-duty gears, high-strength shafts, camshafts, and dowel pins, especially in the automotive and heavy machinery sectors. It’s the ideal choice for applications where parts are subject to constant friction and shock, ensuring longevity and reliability in the toughest working environments.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
