Ahmer Steel stands as a reliable name in Manama, Bahrain, known for providing robust industrial fastening solutions. We take pride in our role as a trusted manufacturer and supplier of essential components like the Carbon Steel Nut. Our commitment lies in delivering products that meet the highest standards of quality and durability, ensuring they serve as dependable links in the structural and mechanical integrity of countless projects across the region and beyond.
These nuts are crafted from carbon steel, a material celebrated for its straightforward yet effective composition primarily of iron and carbon. This fundamental blend grants the nuts notable mechanical properties, including excellent tensile strength and good resistance to wear and tear. They are capable of handling significant load-bearing demands, making them a sturdy and reliable choice for creating secure fastenings in a wide array of applications.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

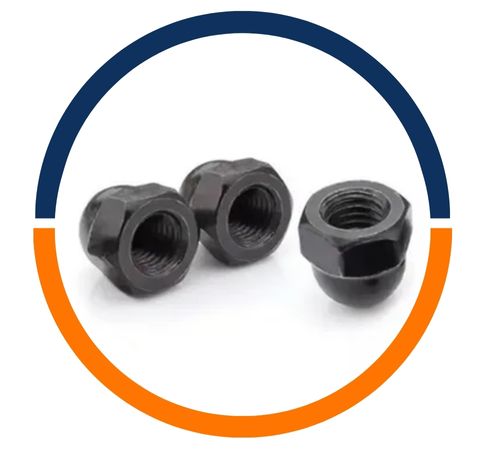

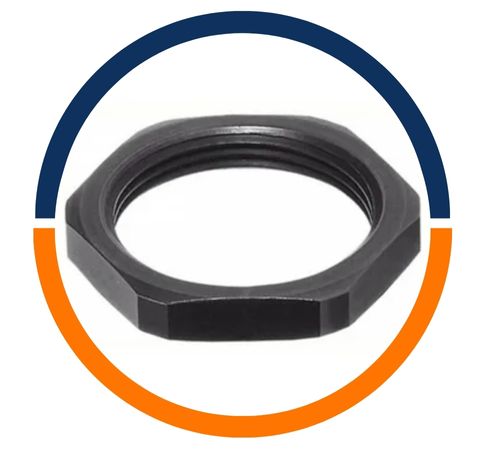

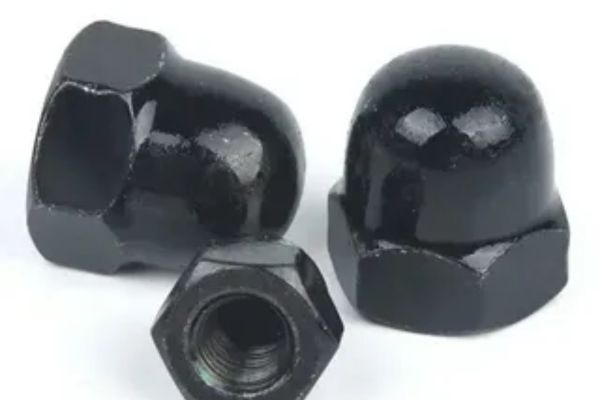

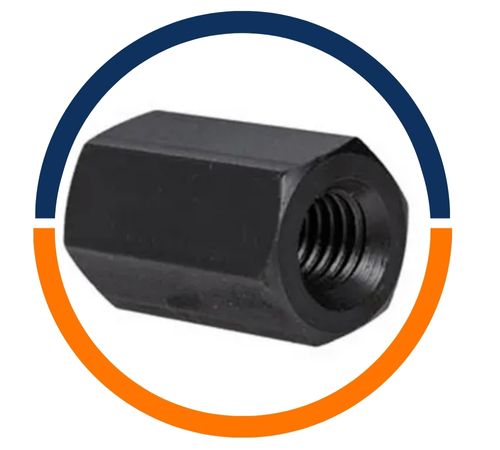

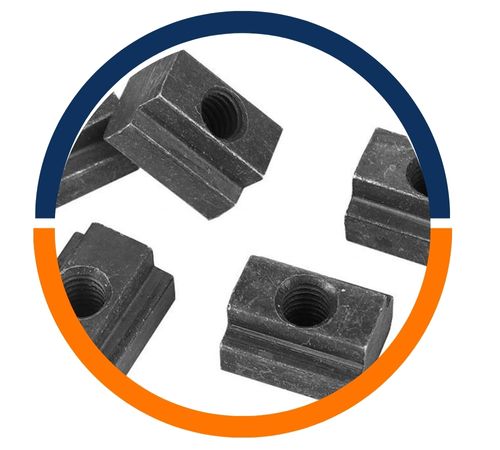

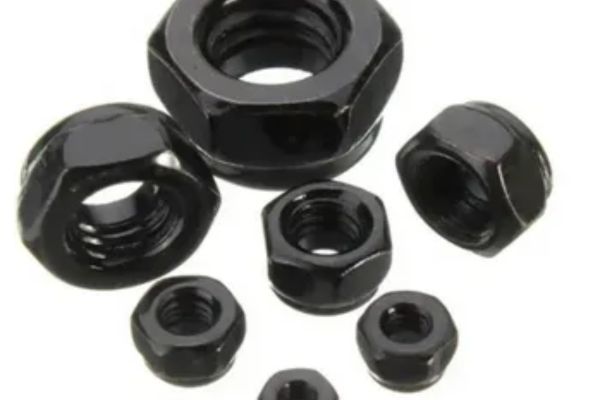

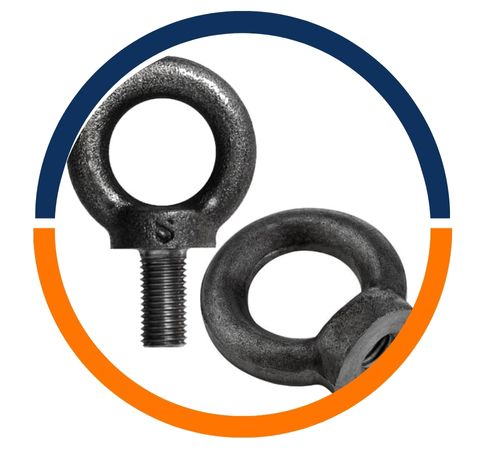

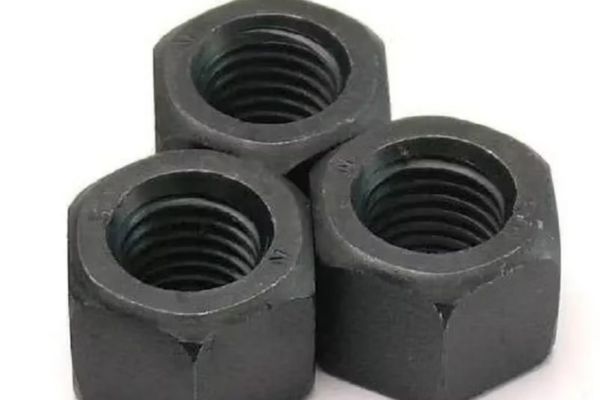

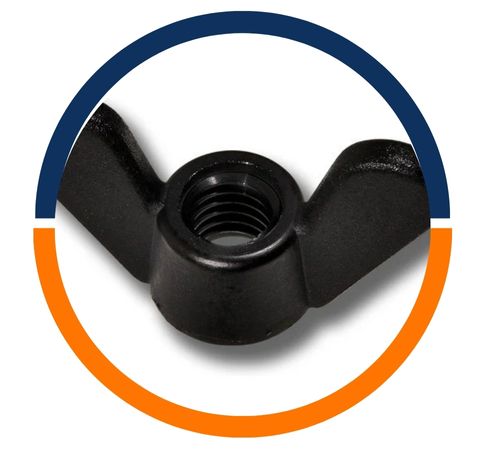

Type : Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Nut in Manama, Bahrain. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Nut needs!
| Â Hex Nut NB | Across Corners | MAX Thickness | MIN Thickness | MAX Across Flats | MIN Across Flats |
|---|---|---|---|---|---|
| M 8 | 14.38 | 6.8 | 6.44 | 13 | 12.73 |
| M 10 | 17.77 | 8.4 | 8.04 | 16 | 15.73 |
| M 12 | 20.03 | 10.8 | 10.37 | 18 | 17.73 |
| M 14 | 23.35 | 12.8 | 12.1 | 21 | 20.67 |
| M 16 | 26.75 | 14.8 | 14.1 | 24 | 23.67 |
| M 18 | 29.56 | 15.8 | 15.1 | 27 | 26.16 |
| M 20 | 32.95 | 18 | 16.9 | 30 | 29.16 |
| M 22 | 37.29 | 19.4 | 18.1 | 34 | 33 |
| M 24 | 39.55 | 21.5 | 20.2 | 36 | 35 |
| M 27 | 45.2 | 23.8 | 22.5 | 41 | 40 |
| M 30 | 50.85 | 26.6 | 24.3 | 46 | 45 |
| M 33 | 55.37 | 28.7 | 27.4 | 50 | 49 |
| M 36 | 60.79 | 31 | 29.4 | 55 | 53.8 |
| M 39 | 66.44 | 33.4 | 31.8 | 60 | 58.8 |
| M 42 | 71.3 | 34 | 32.4 | 65 | 63.1 |
| M 45 | 76.95 | 36 | 34.4 | 70 | 68.1 |
| M 48 | 82.6 | 38 | 39.4 | 75 | 73.1 |
| M 52 | 88.25 | 42 | 40.4 | 80 | 78.1 |
| M 56 | 93.56 | 45 | 43.4 | 85 | 82.8 |
| M 60 | 99.21 | 48 | 46.4 | 90 | 87.8 |
| M 64 | 104.86 | 51 | 49.1 | 95 | 92.8 |
| M 68 | 110.51 | 54 | 52.1 | 100 | 97.8 |
| M 72 x 6 | 116.16 | 58 | 56.1 | 105 | 102.8 |
| M 76 x 6 | 121.81 | 61 | 59.1 | 110 | 107.8 |
| M 80 x 6 | 127.46 | 64 | 62.1 | 115 | 112.8 |
| Nominal or Basic Major Diameter of Nut Thread | Nuts Width Across Flats (F) | Width Across Corners (G) | Thickness of Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Basic | Max | Min |  Max |  Min | Basic |  Max | Min | ||
| 1/4 | 0.2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 0.226 | 0.212 |
| 5/16 | 0.3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | 0.273 | 0.258 |
| 3/8 | 0.3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | 0.337 | 0.320 |
| 7/16 | 0.4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | 0.385 | 0.365 |
| 1/2 | 0.5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | 0.448 | 0.427 |
| 9/16 | 0.5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | 0.496 | 0.473 |
| 5/8 | 0.6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | 0.559 | 0.535 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | 0.665 | 0.617 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | 0.776 | 0.724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | 0.887 | 0.831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | 0.999 | 0.939 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 1-1/16 | 1.094 | 1.030 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.317 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.456 | 2-3/8 | 2.431 | 2.319 |
| 3 | 3.000 | 4-1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2-19/32 | 2.654 | 2.534 |
The versatility of carbon steel nuts means they are a fundamental component in numerous fields. You will find them securing everything from the framework of towering buildings and industrial machinery to everyday consumer goods and essential infrastructure projects. Their primary role is to work in tandem with bolts to form strong, reliable connections that are crucial for both safety and functionality, proving indispensable in construction, manufacturing, and general engineering tasks.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
