Nestled in the heart of Manama, Ahmer Steel stands as a trusted partner for high-performance steel solutions, specializing in the distinctive Corten Steel S355JOW sheet and plate. We understand that your projects demand materials that are not only strong but also intelligently adaptive. This particular steel is engineered to develop a stable, self-protecting rust-like patina when exposed to the elements, offering a unique blend of aesthetic appeal and long-term durability that is perfectly suited to the regional climate and demanding industrial applications.
The strength of Corten Steel S355JOW lies in its specialized composition, which includes elements like copper, chromium, and nickel. These additions work in harmony to promote the formation of a tight, adherent oxide layer that dramatically slows further corrosion. Mechanically, it boasts a minimum yield strength of 355 MPa, providing excellent structural integrity and toughness. This combination ensures the material can withstand significant stress and impact, making it a reliably robust choice for challenging environments.

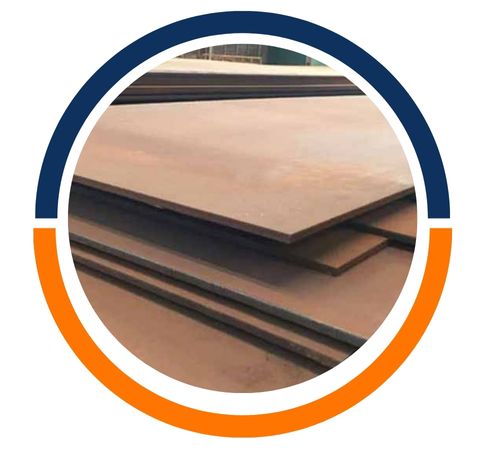

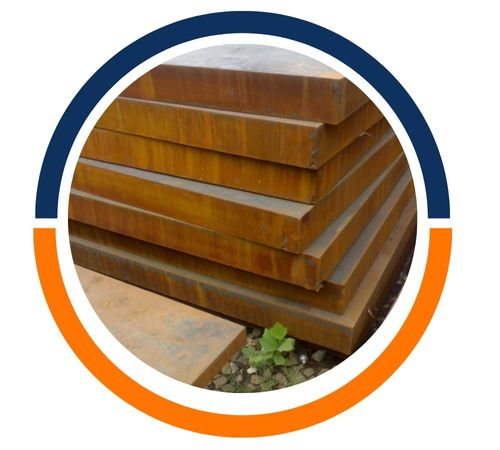

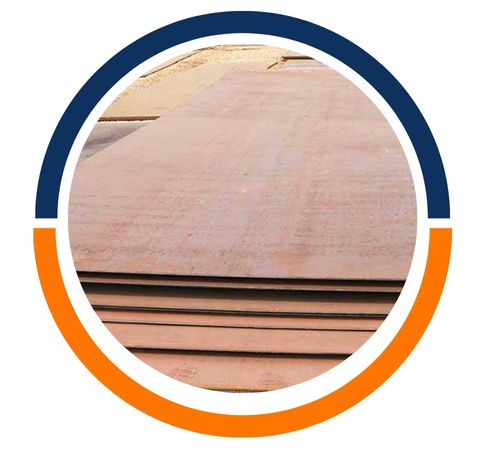

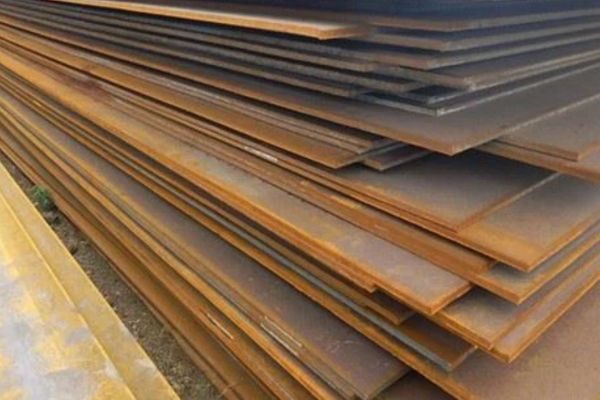

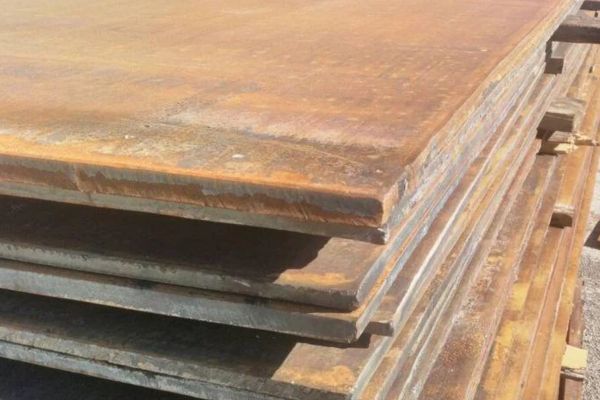

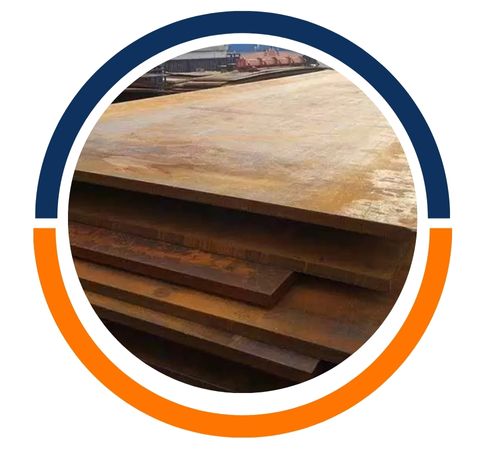

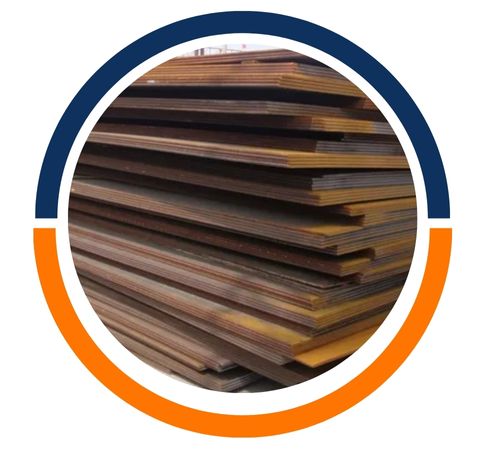

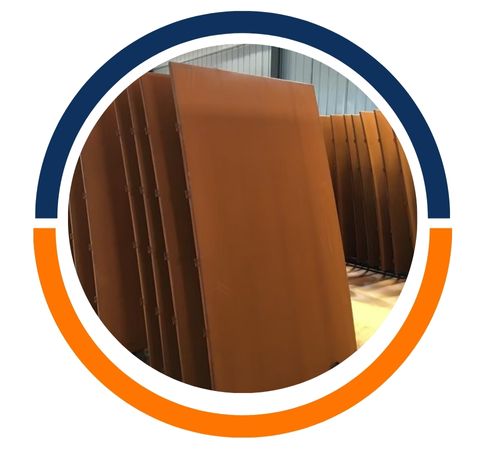

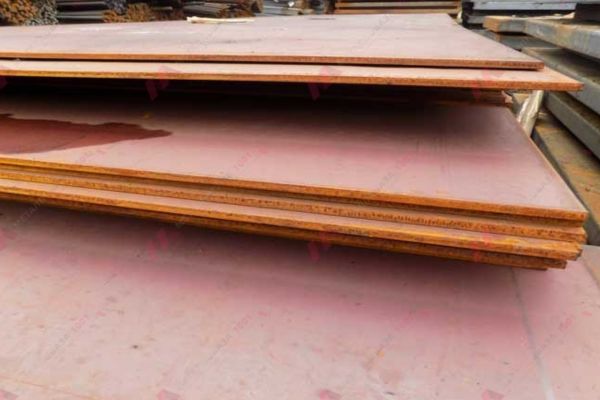

Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The unique character of this steel makes it incredibly versatile. Its iconic weathered appearance is highly sought after by architects for modern building facades, bridges, and striking outdoor sculptures. Beyond aesthetics, its resilience is vital for industrial applications like spacious silos, heavy-duty shipping containers, and robust structural components within harsh settings. Essentially, wherever a project calls for a material that combines structural strength with a natural, protective finish that minimizes maintenance, Corten Steel S355JOW proves to be an exceptionally wise and enduring selection.
