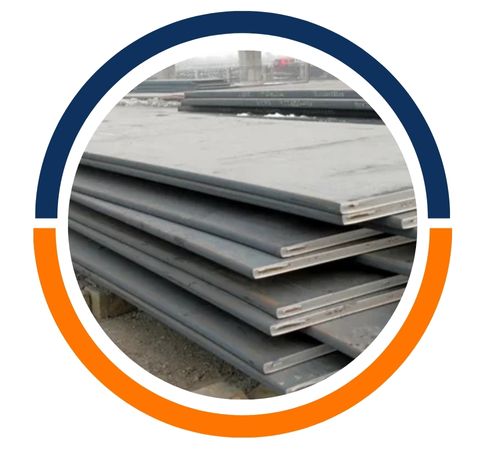

Located in the industrial heart of Manama, Ahmer Steel stands as a trusted source for high-grade steel solutions, specializing in the robust EN 9 sheets and plates. Our commitment is to provide local industries with reliable, high-strength materials that form the backbone of demanding projects. We understand that quality components are the foundation of success, and our expertise ensures you receive products that meet the highest standards for performance and durability, supporting Bahrain’s growing infrastructure and manufacturing sectors with unwavering consistency and service.
EN 9 steel is known for its balanced composition, primarily consisting of carbon, manganese, and silicon, which gives it notable strength and wear resistance. This medium carbon steel is often supplied in a hardened and tempered condition, achieving a good combination of toughness and hardness. These mechanical properties make it less brittle than higher carbon grades while still offering excellent durability, allowing it to withstand significant stress and abrasion in various demanding environments without failing.

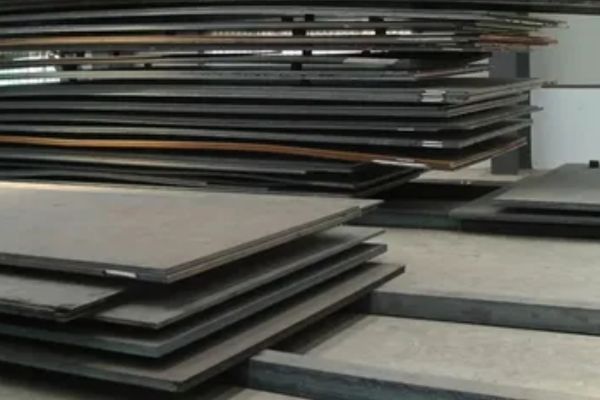

Grade : EN9 Low Alloy Steel Plate
Thickness : from 3mm up to as thick as 150mm
Length :3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)
| Â Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| BS 970 1991 | BS 970 1955 EN | AISI/SAE | Werkstoff |
| 070M55 | EN9 | 1055 | 1.0535 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
This versatile material is ideally suited for applications where toughness is paramount. You will commonly find EN 9 sheets and plates being used to create heavy-duty components like gears, shafts, crankshafts, and high-strength brackets in the automotive and general engineering sectors. Its reliability also makes it a preferred choice for constructing agricultural machinery parts, railway components, and other industrial tools that require a robust and durable metal capable of enduring constant use and high load conditions over a long service life.
