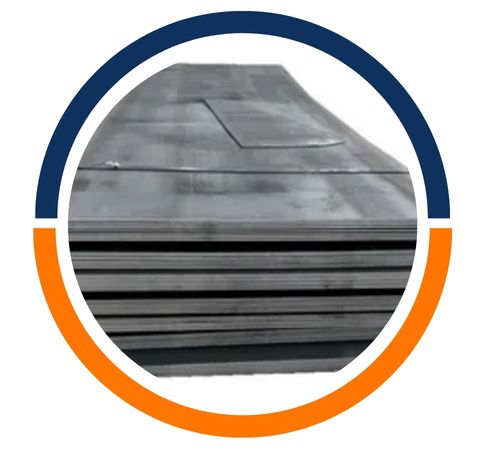

From the heart of Manama, Bahrain, Ahmer Steel has built a reputation as a trusted partner for industry, specializing in the supply of high-integrity steel plates. Our focus includes the robust SA 516 GR.65N NACE and MR 0103-0175 plates, materials engineered to perform in the world’s most challenging environments. We understand that your projects demand unwavering reliability, which is why we provide materials renowned for their exceptional resistance to corrosive elements, ensuring both safety and longevity for your critical infrastructure and equipment.
The chemical composition of these plates is carefully controlled to limit elements like sulfur, which helps prevent cracking in sour service environments. This precise formulation, combined with a specific heat treatment process, gives the steel its notable mechanical strength and toughness. The plates meet stringent requirements for yield and tensile strength, while their enhanced hardness control is a key feature that qualifies them under the demanding NACE MR0175/ISO 15156 standard for oil and gas equipment.
| Grade | ASME SA 516 GR.65N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Tensile strength (MPa) | Yield strength (ksi) | Yield strength (MPa) | Elongation in 200mm (min)(%) | Elongation in 50mm (min) (%) |
| 65-85 | 450-585 | 35 | 240 | 19 | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-460A/B | EN10028 P295GH | A/SA516 – Grade 65 | DIN 17155 17 MN 4 |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.65N NACE and MR 0103-0175 Plates in Manama, Bahrain. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.65N NACE and MR 0103-0175 Plates needs!
These specialized plates are indispensable in sectors where failure is not an option. You will find them forming the vital components of pressure vessels, scrubbers, and reactors within oil refineries, gas processing plants, and petrochemical facilities. They are also crucial for fabricating pipelines and storage tanks that handle sour crude oil and natural gas containing hydrogen sulfide. By choosing these materials, engineers specify a proven defense against sulfide stress cracking, safeguarding both personnel and the environment in high-stakes applications.
Ahmer Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manama, Bahrain.
